Add Verification Gate

A gate is an access point that allows you to stop the pipeline to automatically go to the next stage. A gate helps you to manually intervene and verify or approve a stage of the pipeline before moving on to the next stage in the sequence. Adding a Gate in ISD allows you to either automate your pipeline based on data from supported data sources.

There are four types of gates you can add:

  • Approval

  • Verification

  • Test Verification

  • Policy

Verification Gate

An approval gate stops the pipeline and waits for approval either from a human user or from a computer based on data from a supported plugin.

You can add a Verification Gate after creating a pipeline to the application. To add a Verification Gate follow the steps below:

If you haven’t created an application already, click here.

If you haven’t created your pipelines yet, click here.

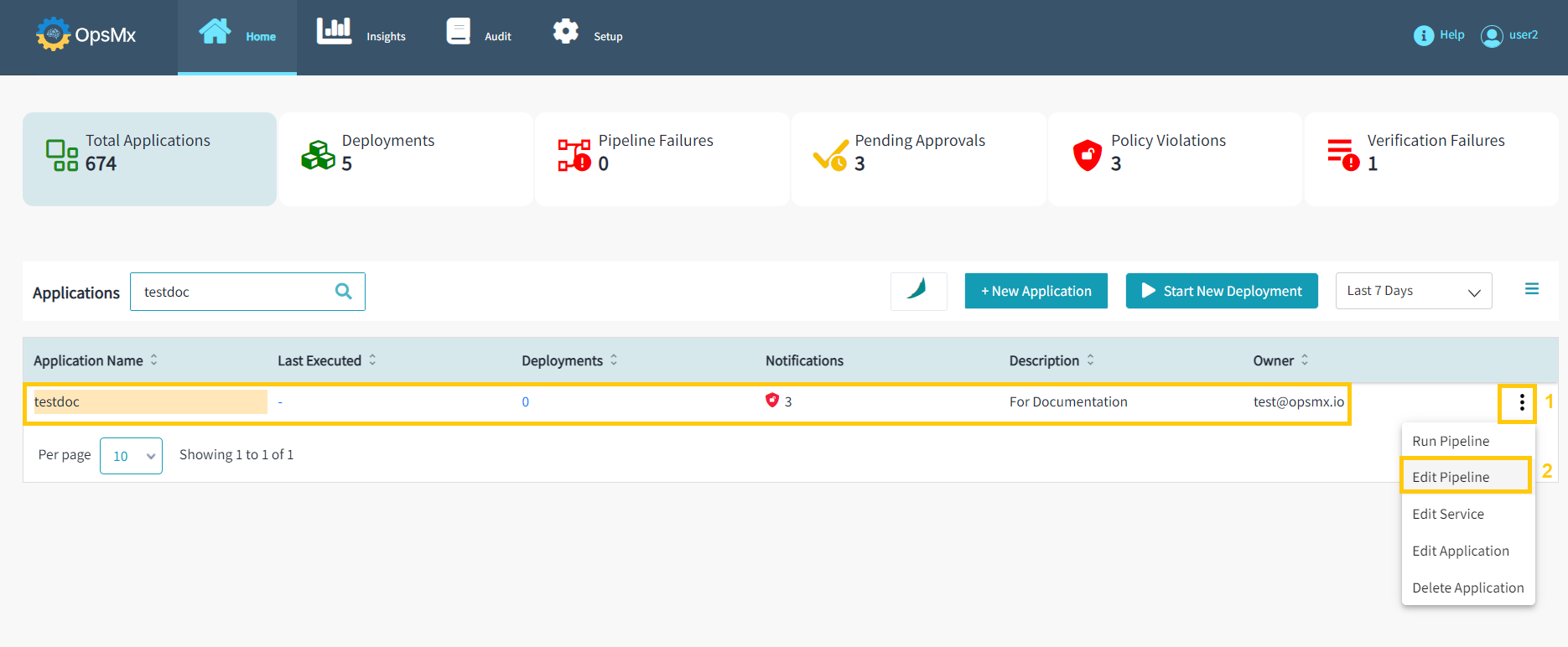

  1. From the Application dashboard, select your application name which you need to edit a pipeline. Click "Three dots" at end of the application name and then select "Edit Pipeline" as shown in the image below.

    Add_verification_gate1

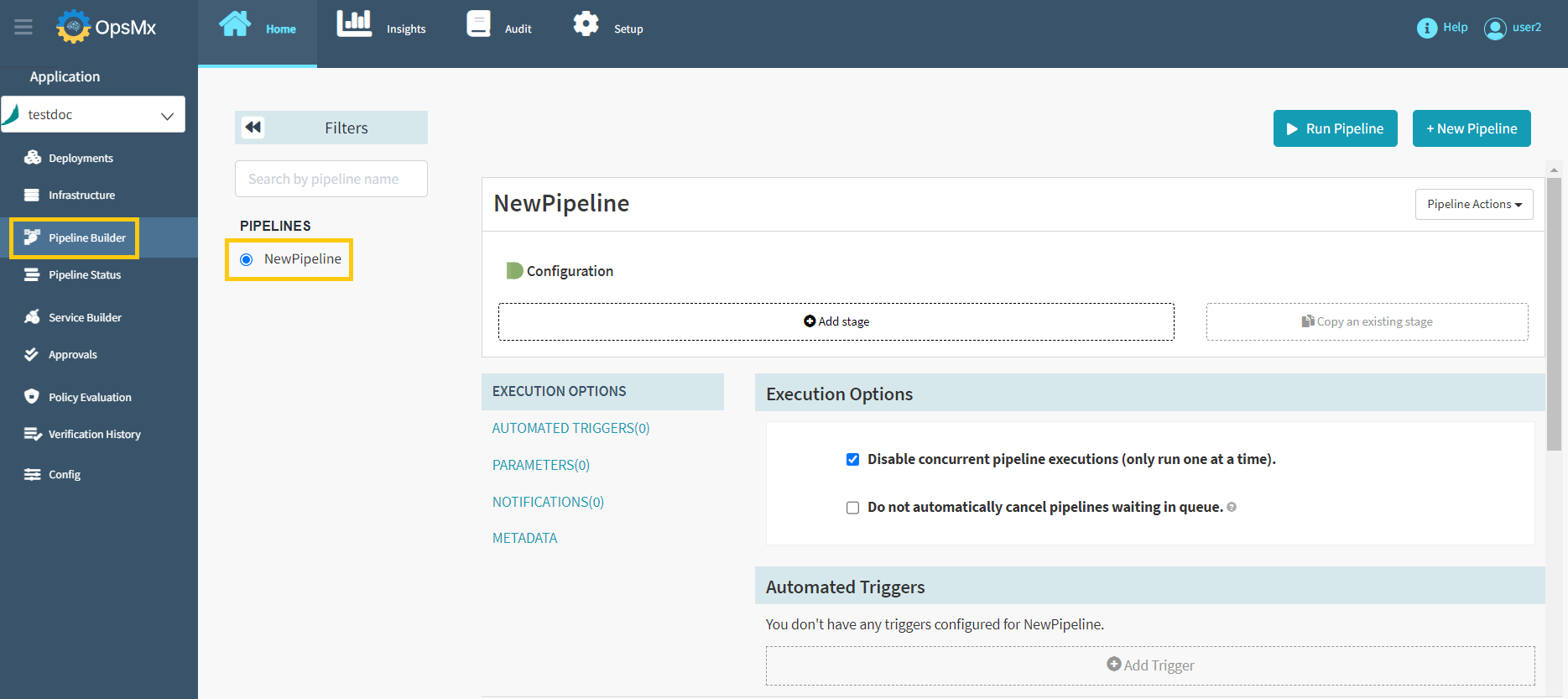

  2. It will redirect you to the "Pipeline Builder" page, where you can modify your pipeline by selecting it from the left-hand side. Users can modify the available pipeline within the application as shown below.

    Add_verification_gate2

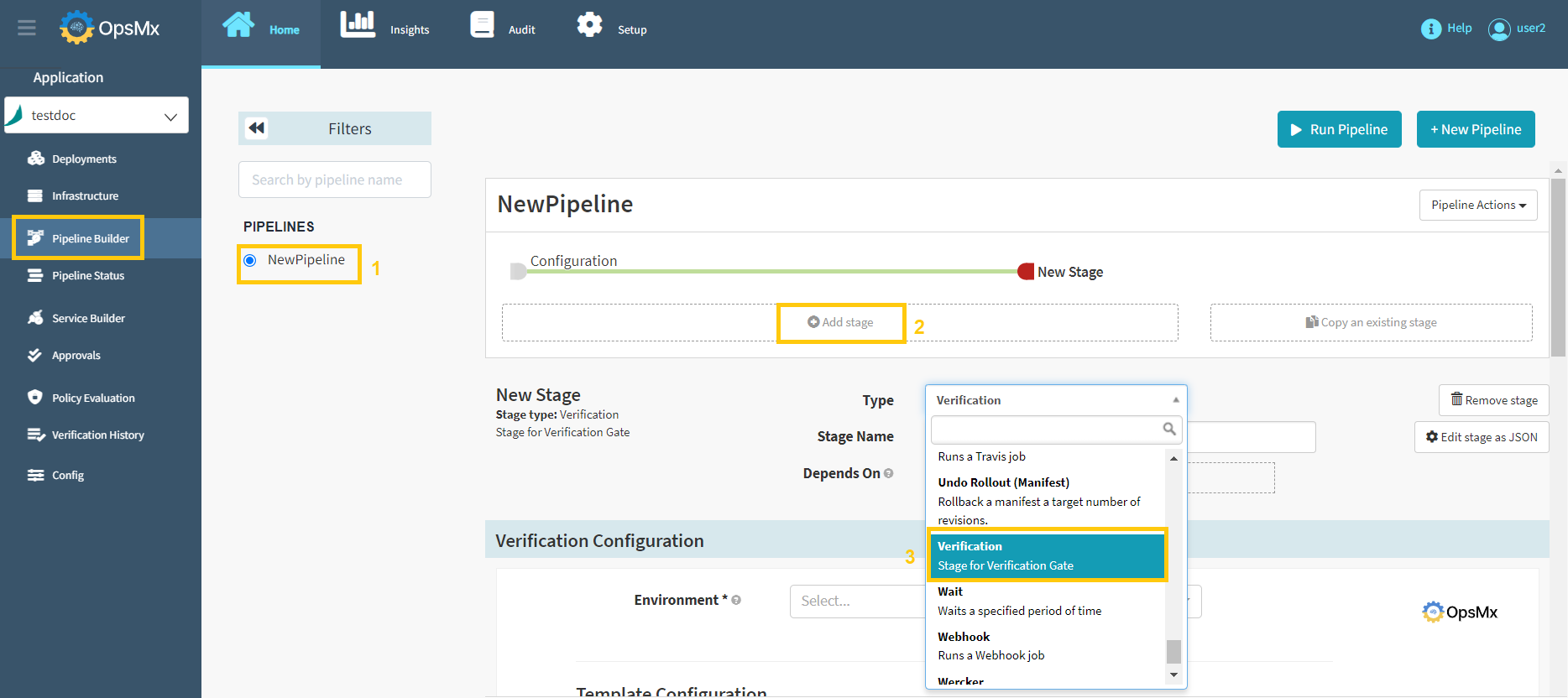

  3. Select your pipeline, where you need to add the Verification Stage. Click "Add Stage" and then select the type "Verification" from the drop-down menu as shown in the image below.

    Add_verification_gate3

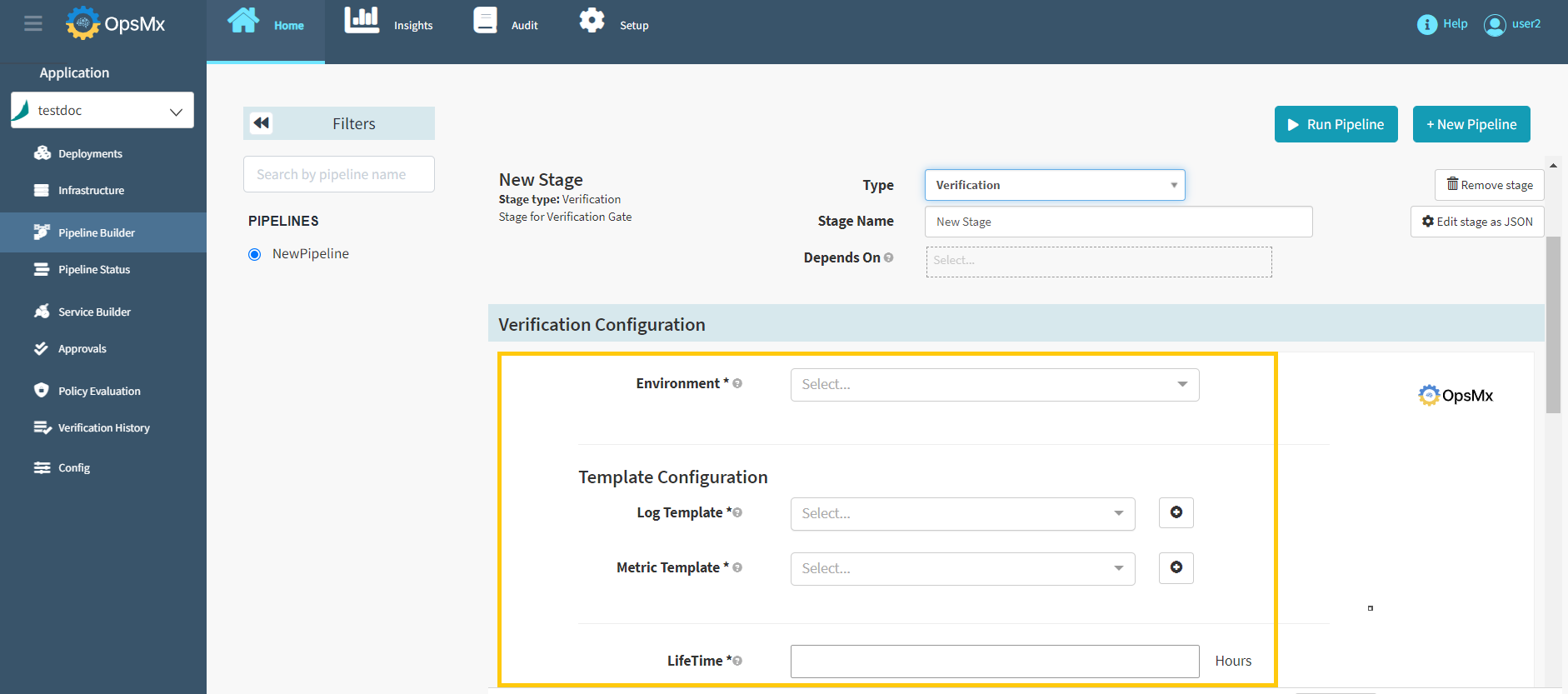

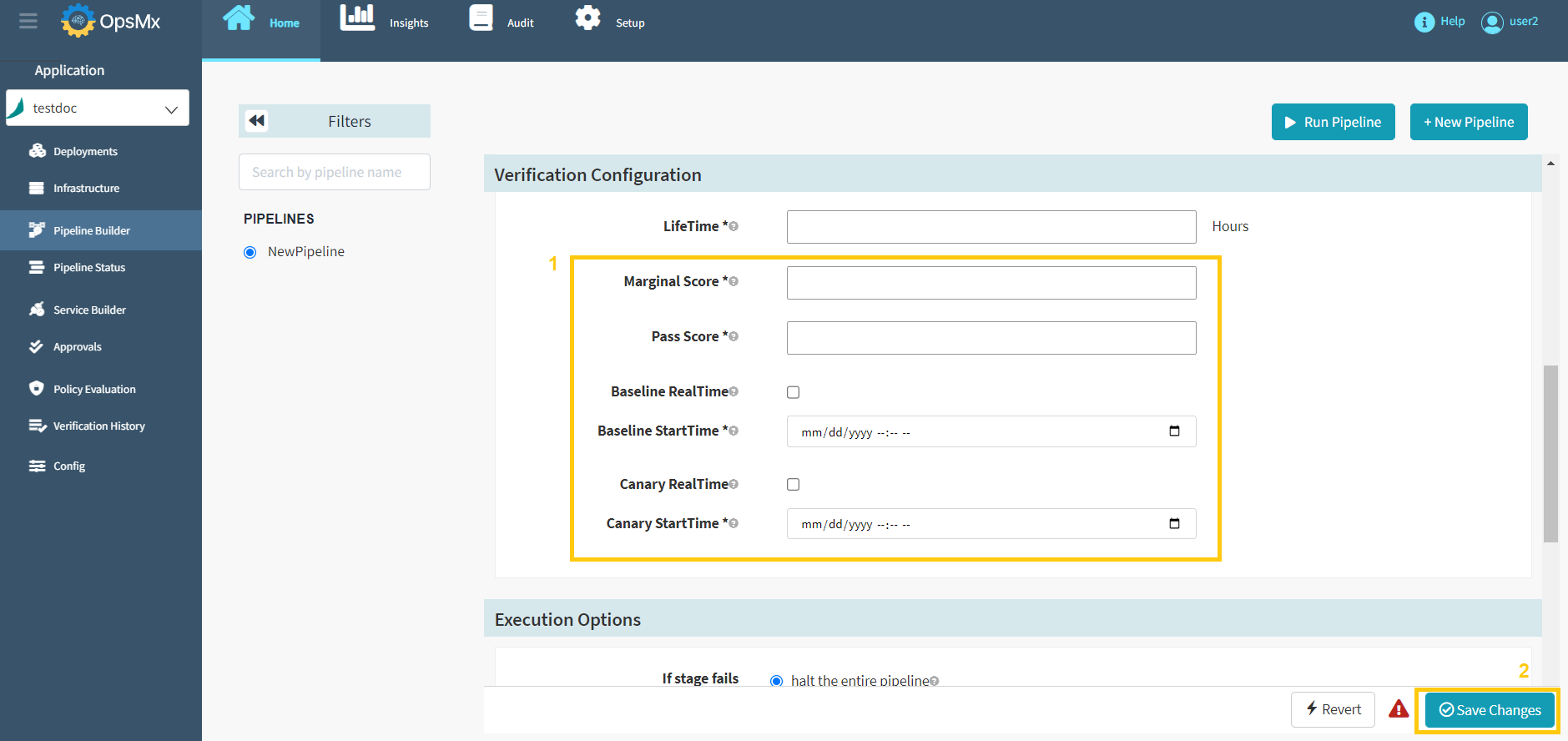

  4. Next, you get the option to configure the verification gate as shown in the image below:

    Add_verification_gate4

    Add_verification_gate5

  5. Update the Verification configuration attributes as described below on the above screen.

    • Verification configuration

      • Environment: Select your environment from the drop-down menu

      • Log Template: Select or Add Log Template

      • Metric Template: Select or Add Metric Template

      • LifeTime: Hours to let the analysis run before making a final determination

      • Marginal Score: If the score is equal to or higher than the Marginal but lower than the Pass Score, “Review” status is shown in the Analysis screen

      • Pass Score: If the Score equal to or higher than Pass Score, the stage will Pass

      • Baseline Real Time:

      • Canary Real Time:

  6. Click "Save changes" and the Verification Gate is added to your pipeline.
