Blue/Green deployment using Manifest

Blue/green strategy is a deployment strategy that is designed to minimize risk by gradually copying the contents of the old server group onto the new before disabling the old server group.

Using a Blue/Green (AKA a red/black) Deployment strategy is easy, as Spinnaker natively supports a Blue/green strategy.

To use a Blue green Strategy,

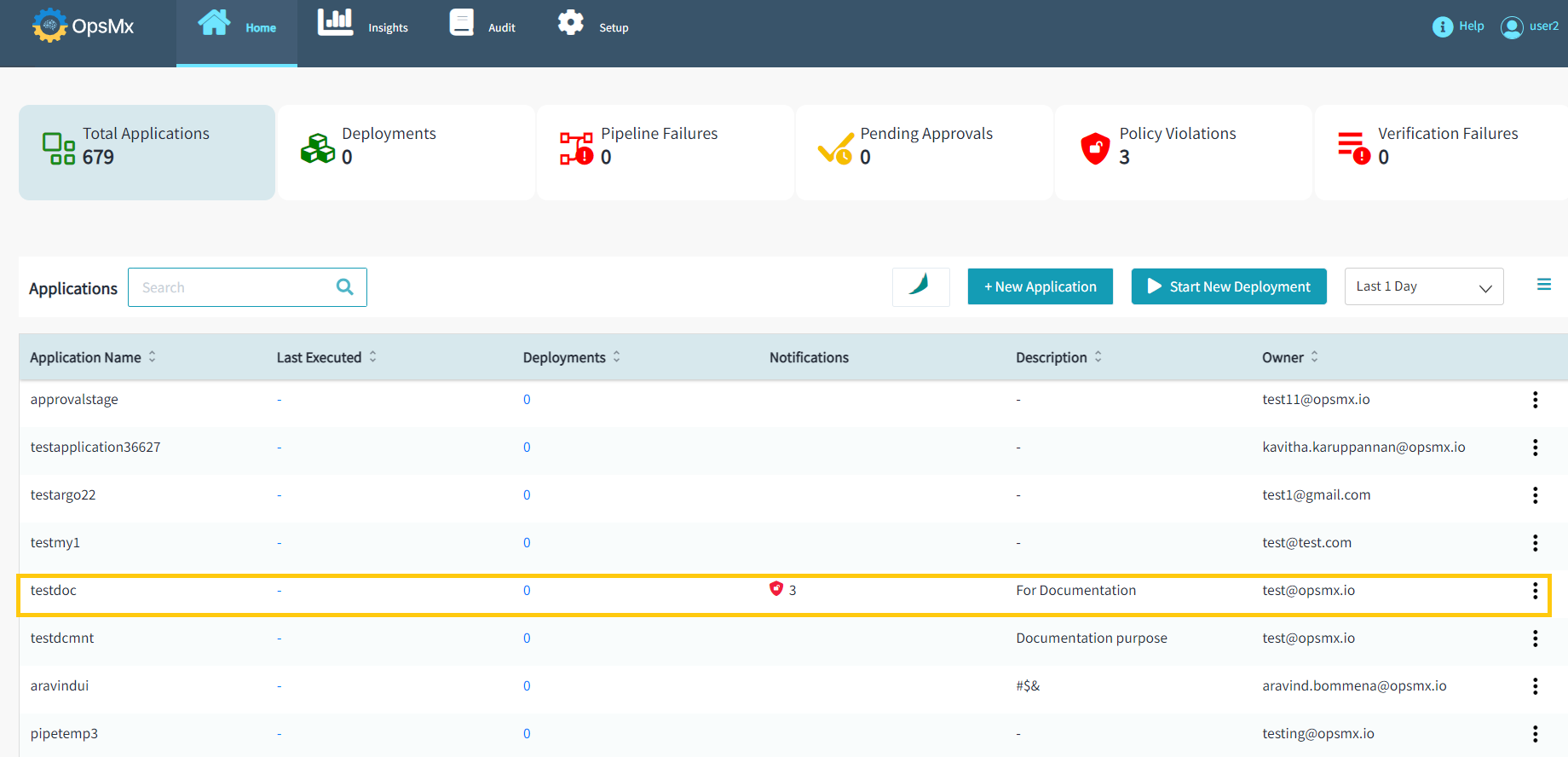

  1. Go to Application Dashboard: When you log in to ISD you would start at the application dashboard. Users will see a list of applications or create a new application entirely. Click on the application where you want to build this pipeline. For the purposes of this tutorial, we are using the application “testdoc”.

    BlueGreen_deployment1

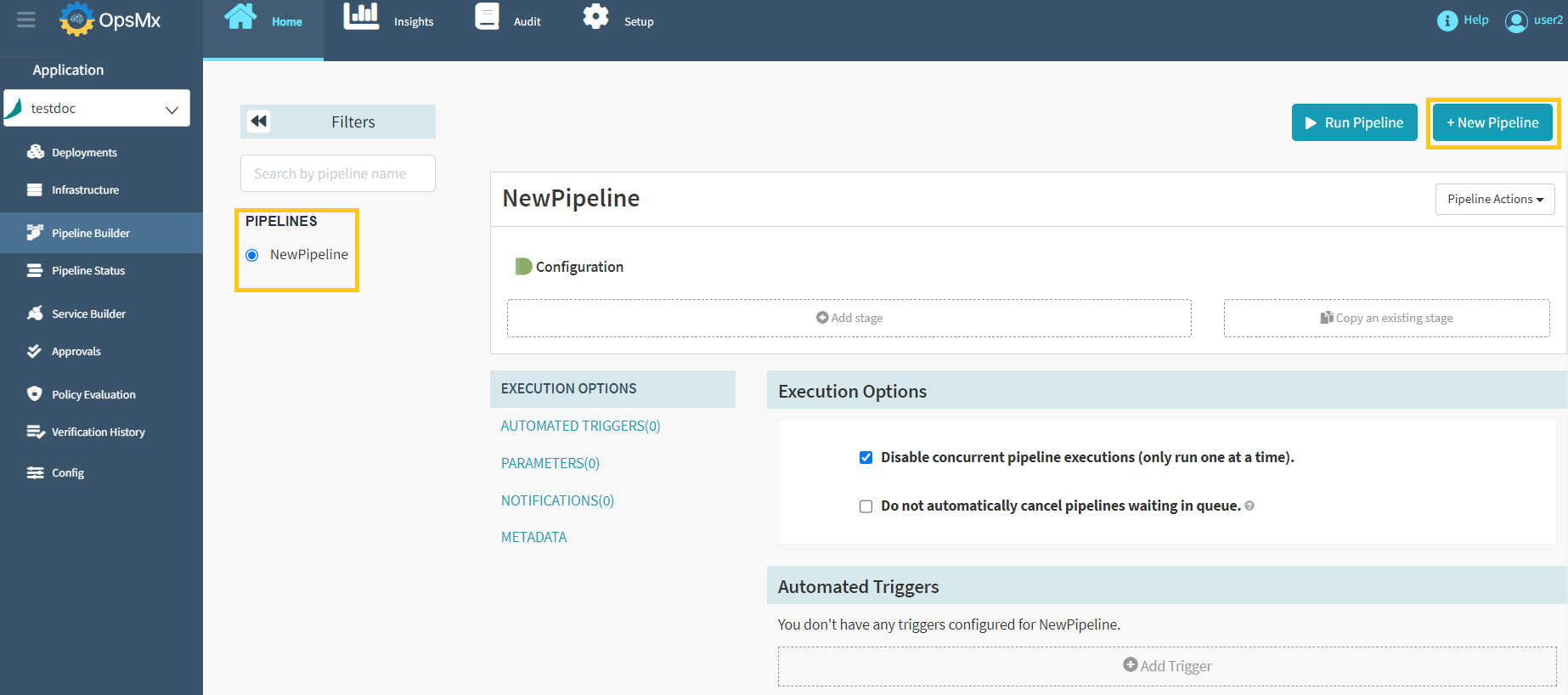

  2. Pipeline Builder: Once you click on an application, it will redirect you to the "Pipeline Status" page. Click "Pipeline Builder" navigate to the pipelines screen and then click "+New Pipeline" button to create a new pipeline as shown in the image below. Users can also view the existing pipelines on the left side of the screen.

    BlueGreen_deployment2

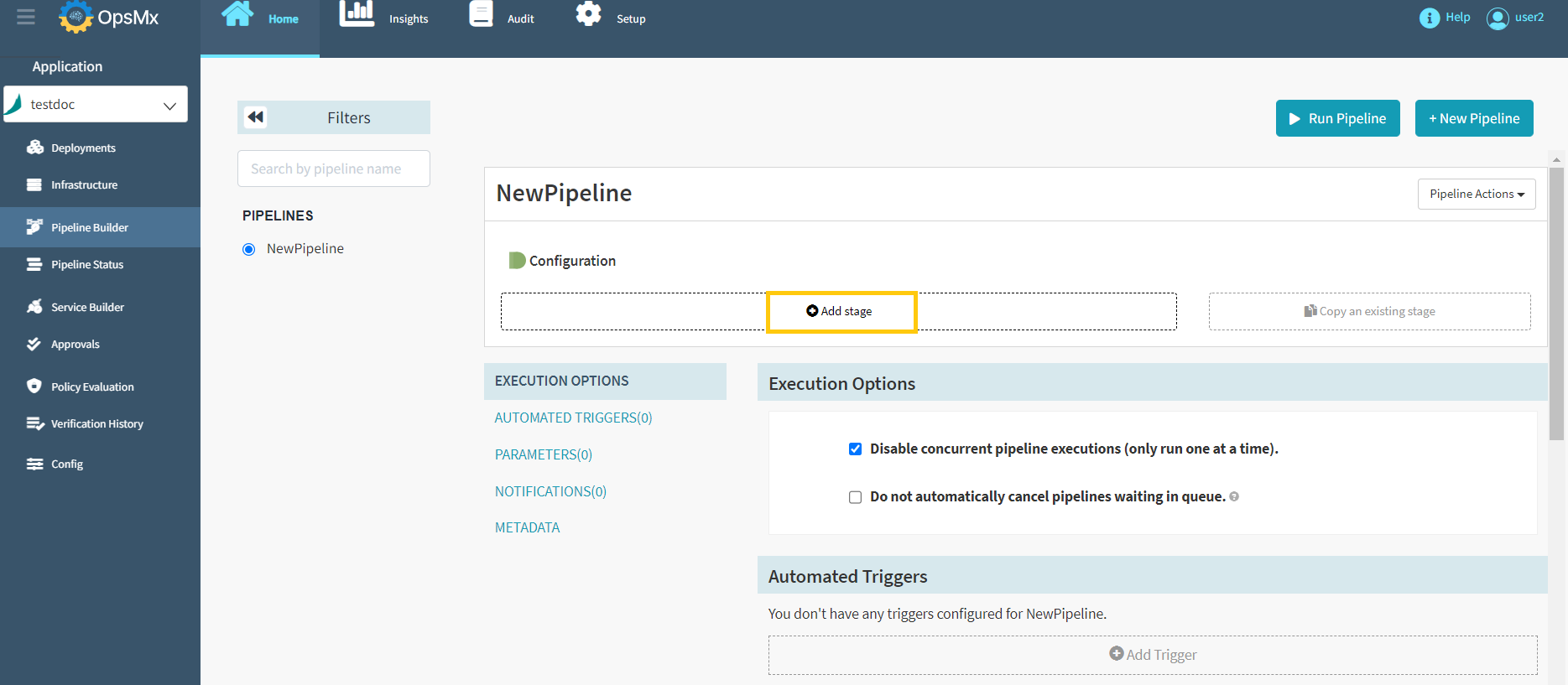

  3. Click on “add stage”: The add stage button is just under the diagrammatic representation of your pipeline. When you click this button, you can select many different types of stages that ISD supports.

    BlueGreen_deployment3

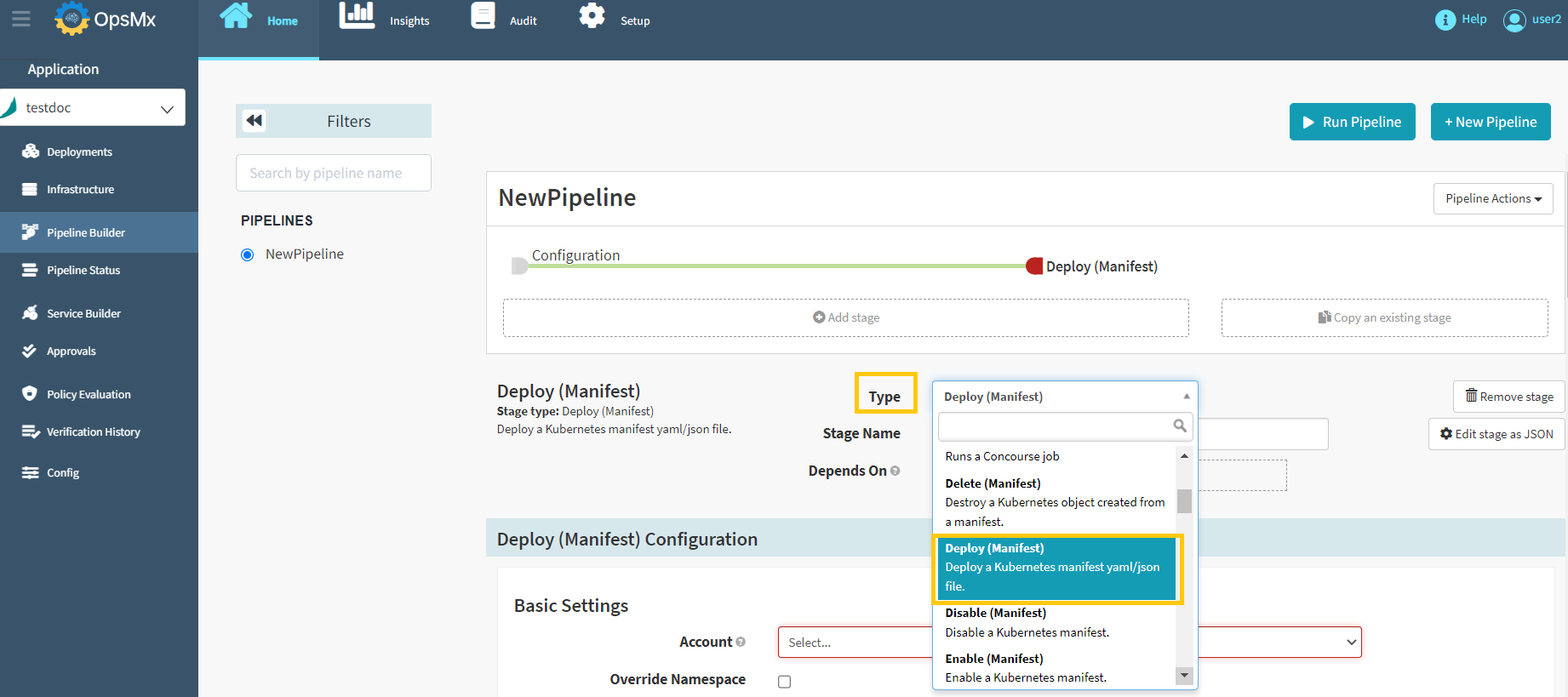

  4. Select “Deployment”: You can add a host of different stages using a drop down menu. They are all alphabetically sorted. Scroll down and select “Deploy(Manifest)”.

    BlueGreen_deployment4

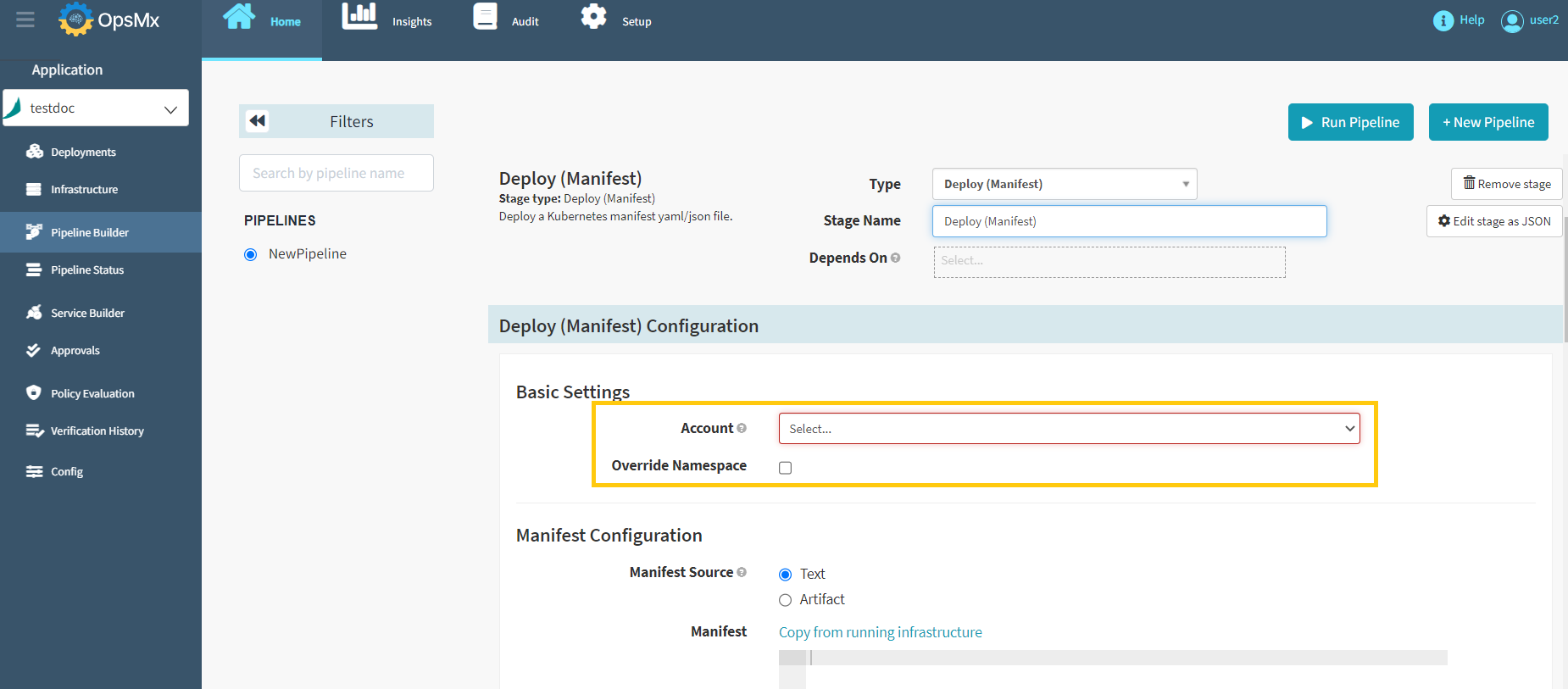

  5. Select your account: An account is the name given to a kubernetes cluster.

    BlueGreen_deployment5

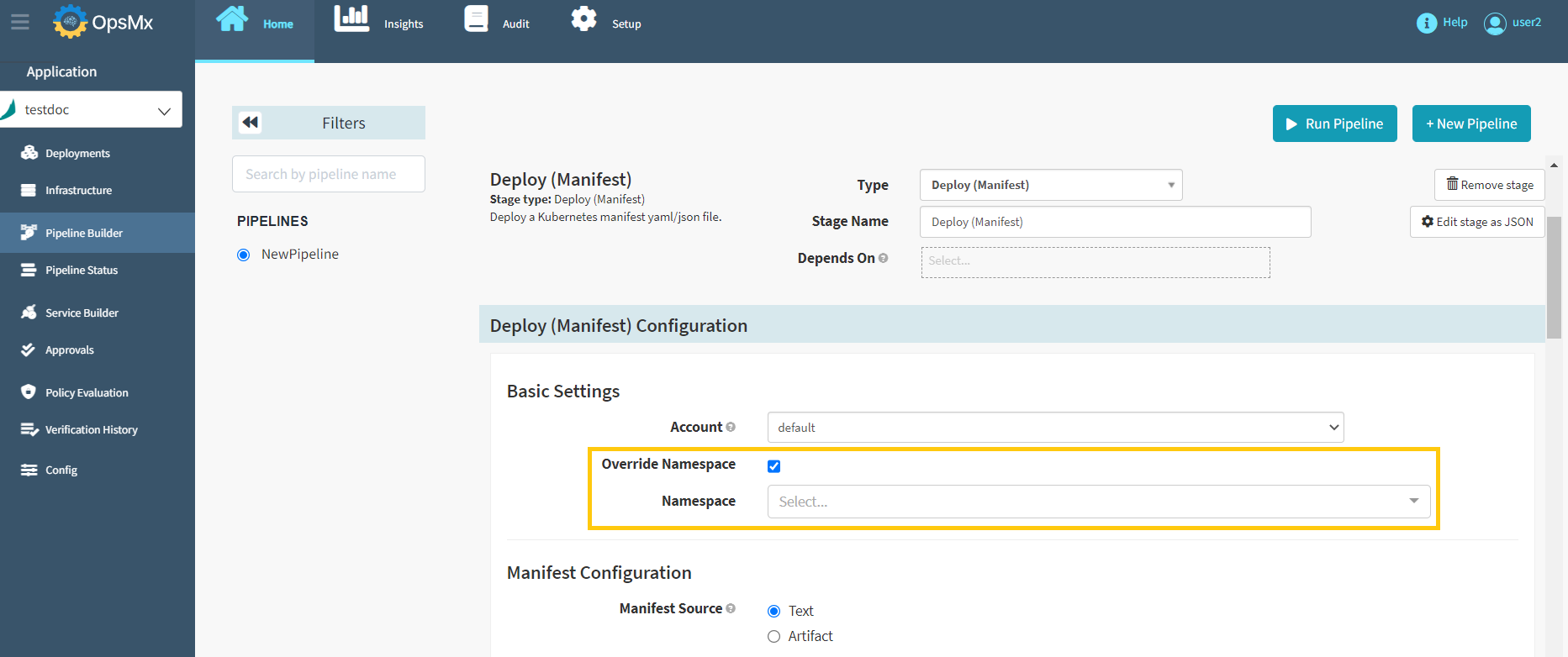

  6. Select your namespace: A namespace is a specific address within a Kubernetes cluster, select the checkbox that says override namespace and you will be able to select the namespace in which your manifest will deploy.

    BlueGreen_deployment6

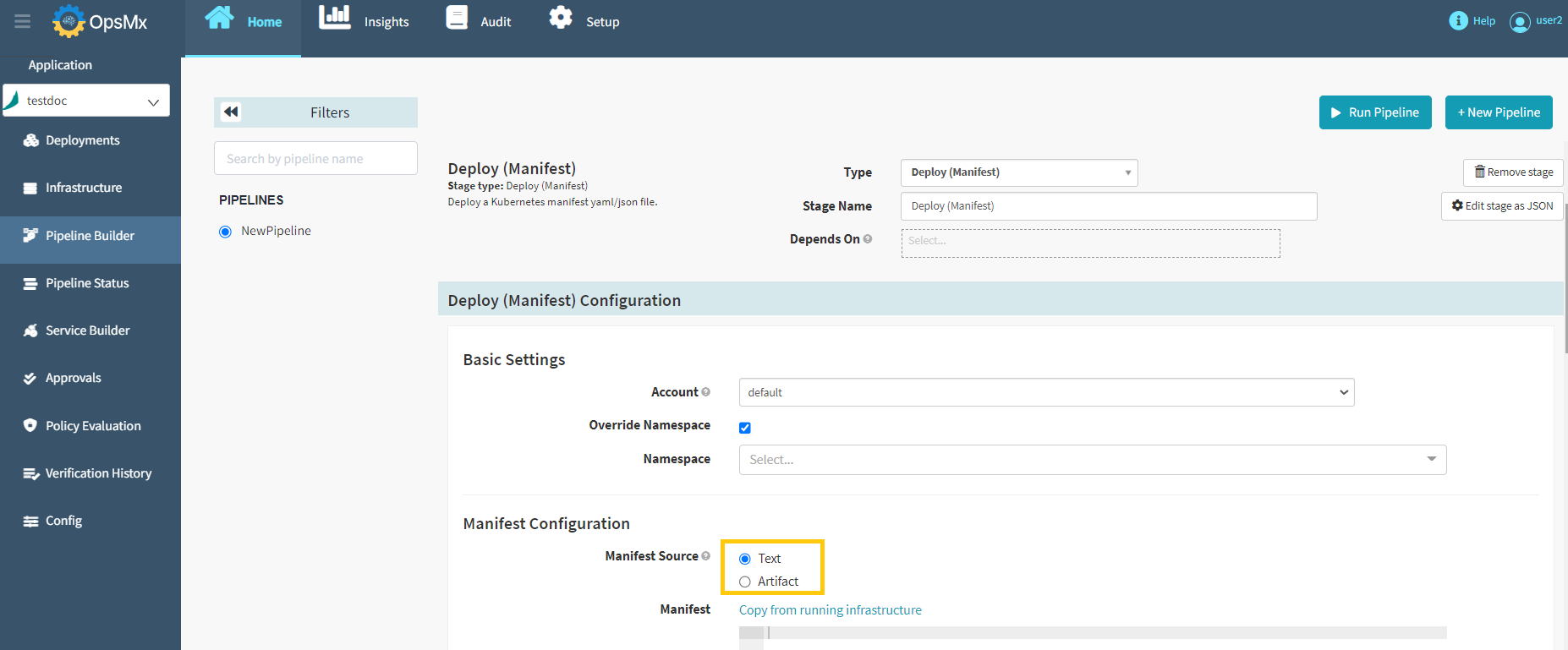

  7. Add your manifest object: You can add your manifest as a text or as an artifact.

    BlueGreen_deployment7

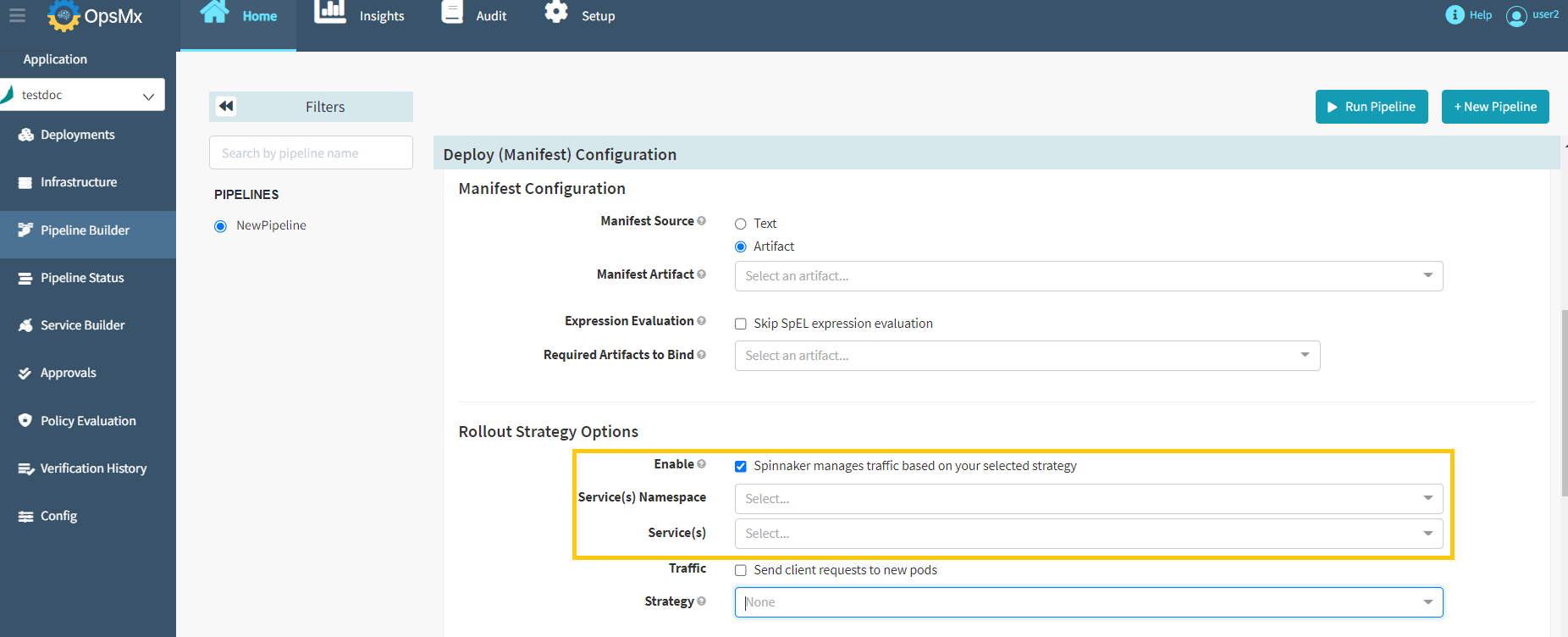

  8. Select rollout strategy options: Click on the statement ‘spinnaker manages your traffic based on your selected strategy’. Define the service namespace and service you are applying this strategy to in below screen.

    BlueGreen_deployment8

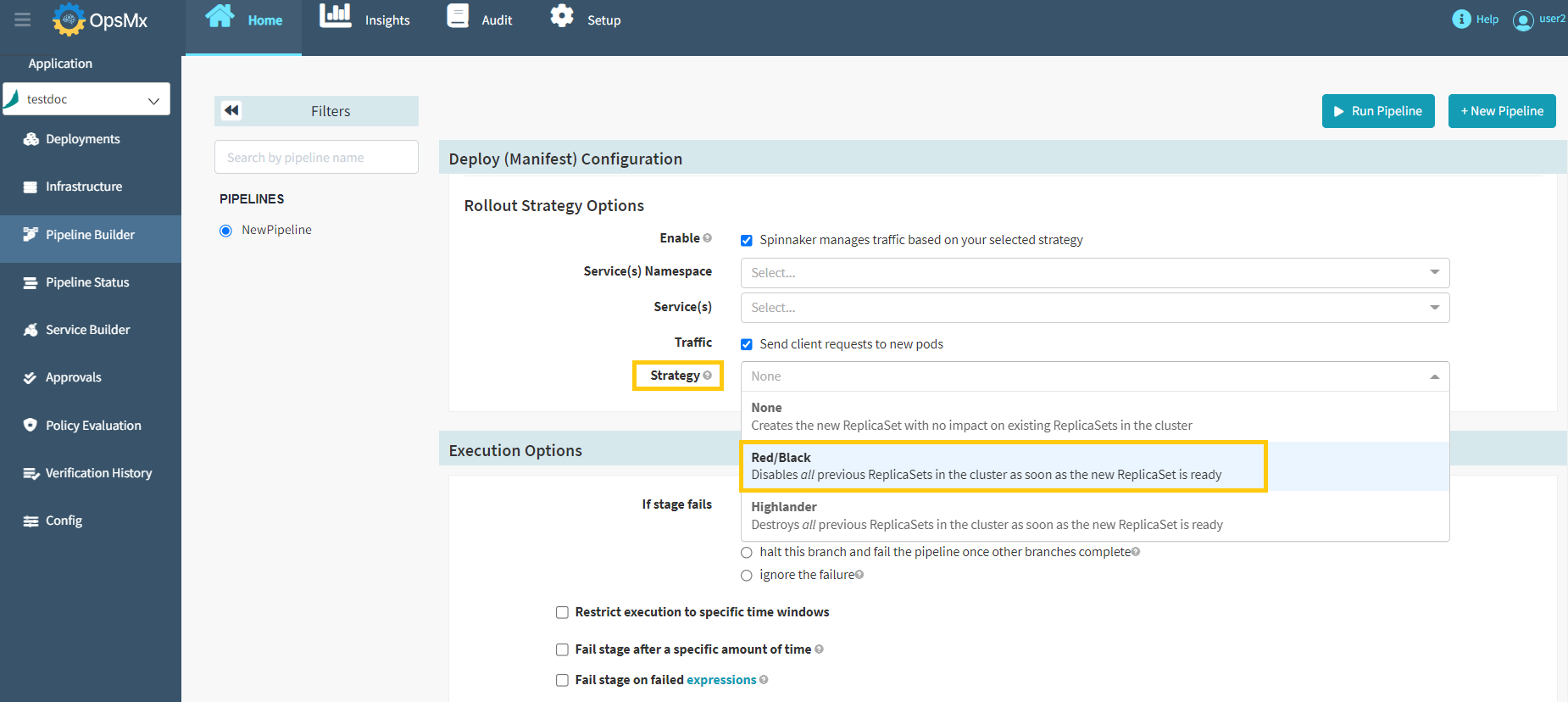

  9. Select your strategy from the drop-down list, you will find the Red/black strategy.

    BlueGreen_deployment9

  10. Add additional configurations: Finalize your configurations.
