Manual Approval before deployment

A Manual Judgment is a stage you can add to a Spinnaker Pipeline whenever you require Human intervention in the process. If you want to have a human verify the deployment before it takes place, then a user can add a manual judgment stage before deployment.

To add a manual Judgment stage:

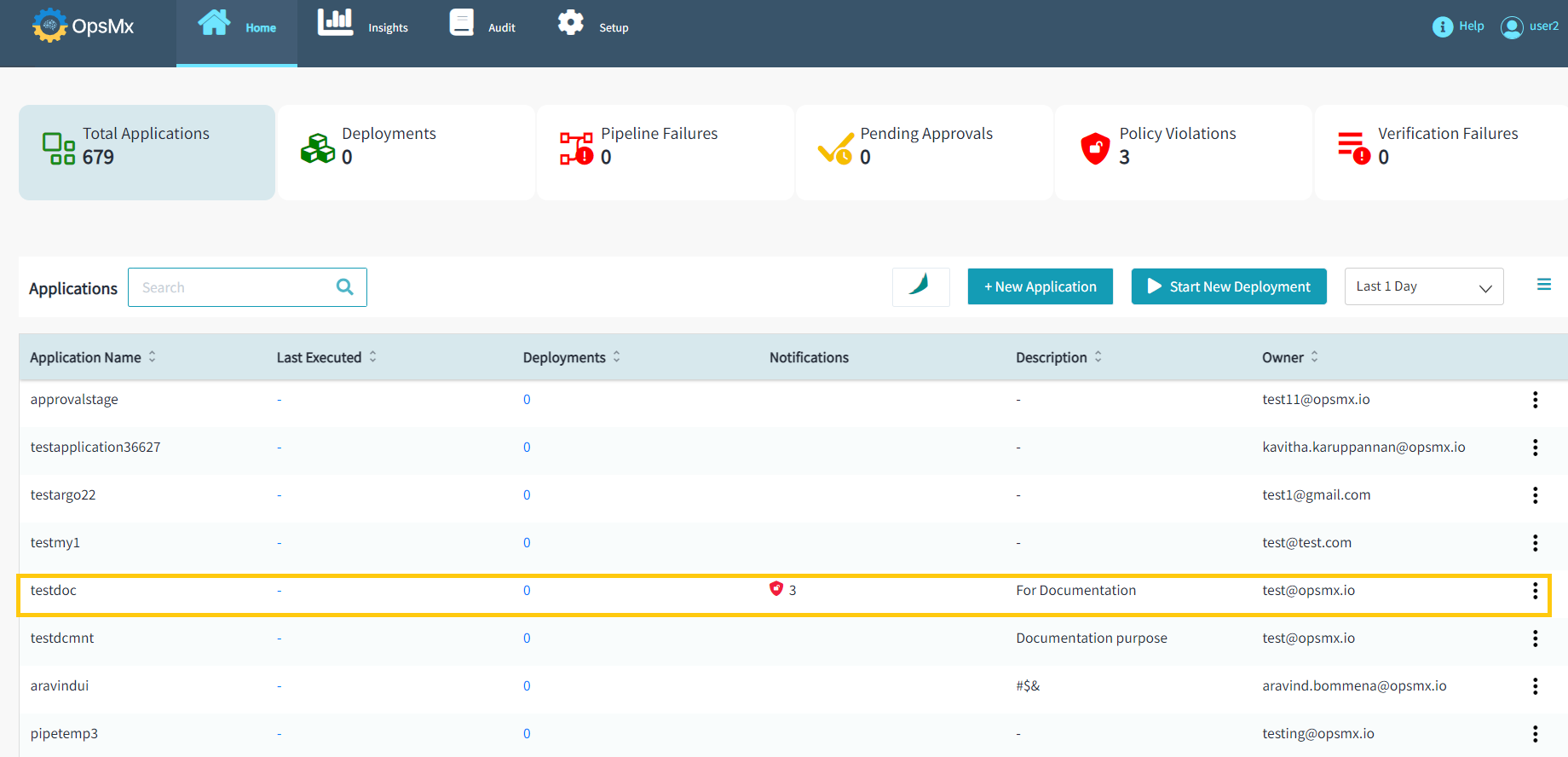

  1. Go to Application Dashboard: When you log in to ISD you would start at the application dashboard. Users will see a list of applications or create a new application entirely. Click on the application “testdoc”.

    Manual_approval1

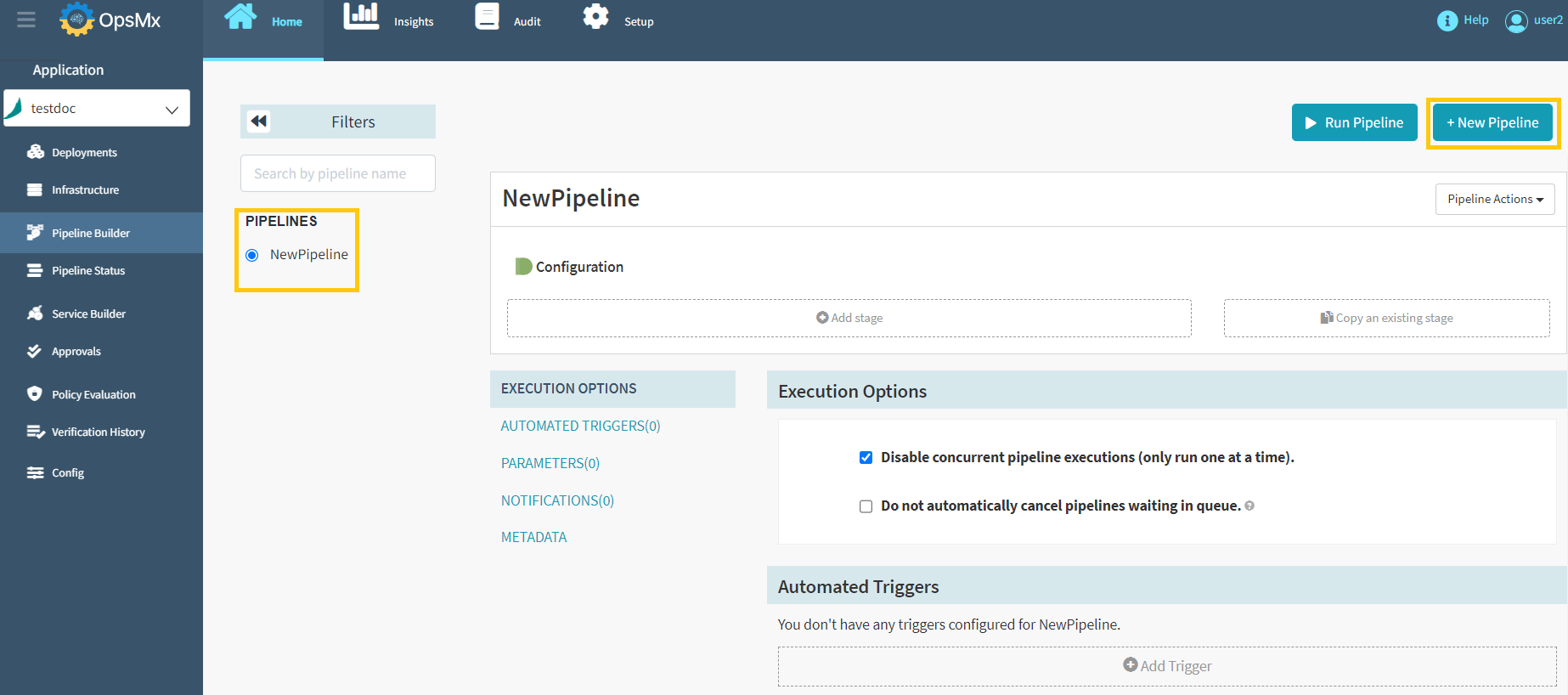

  2. Pipeline Builder: Once you click on an application, it will redirect you to the "Pipeline Status" page. Click "Pipeline Builder" navigate to the pipelines screen and then click "+New Pipeline" button to create a new pipeline as shown in the image below. Users can also view the existing pipelines on the left side of the screen.

    Manual_approval2

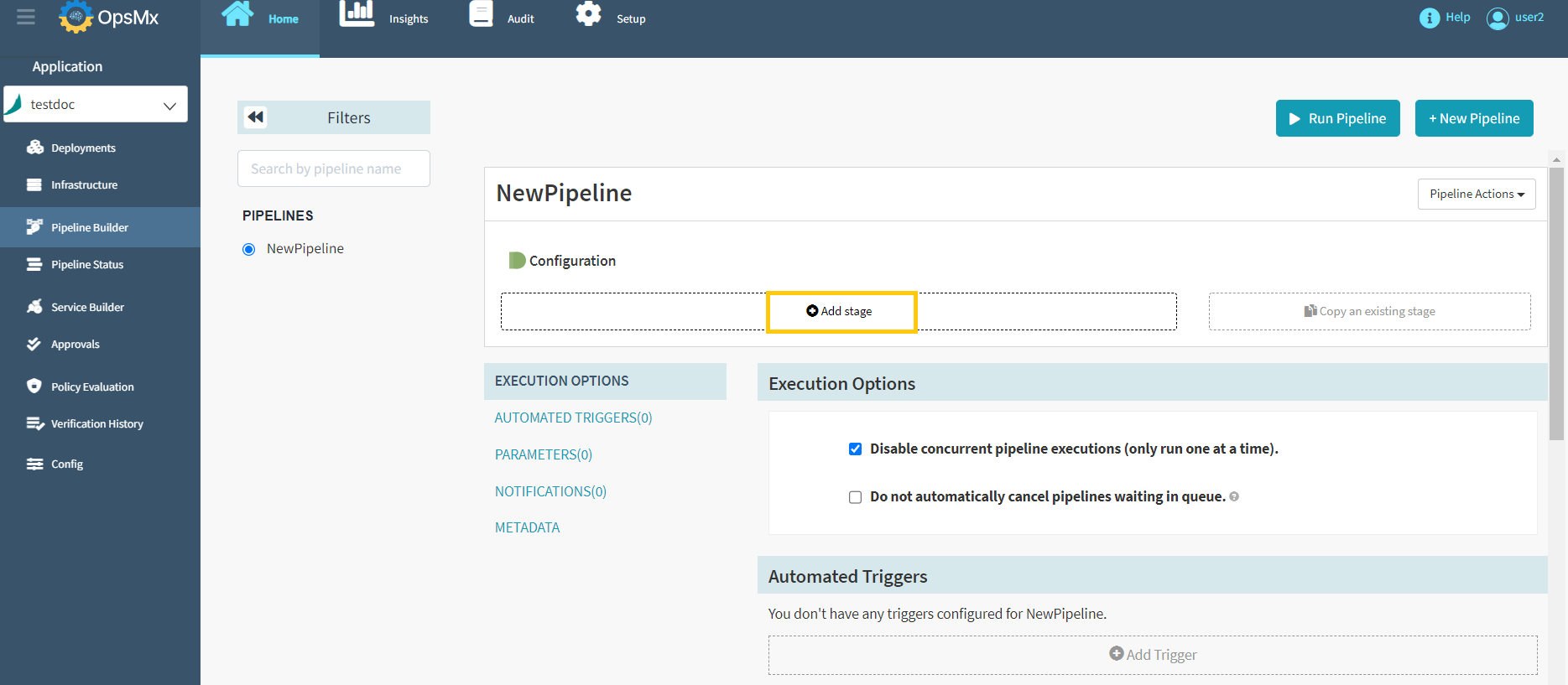

  3. Click on “add stage”: The add stage button is just under the diagrammatic representation of your pipeline. When you click this button, you can select many different types of stages that ISD supports.

    Manual_approval3

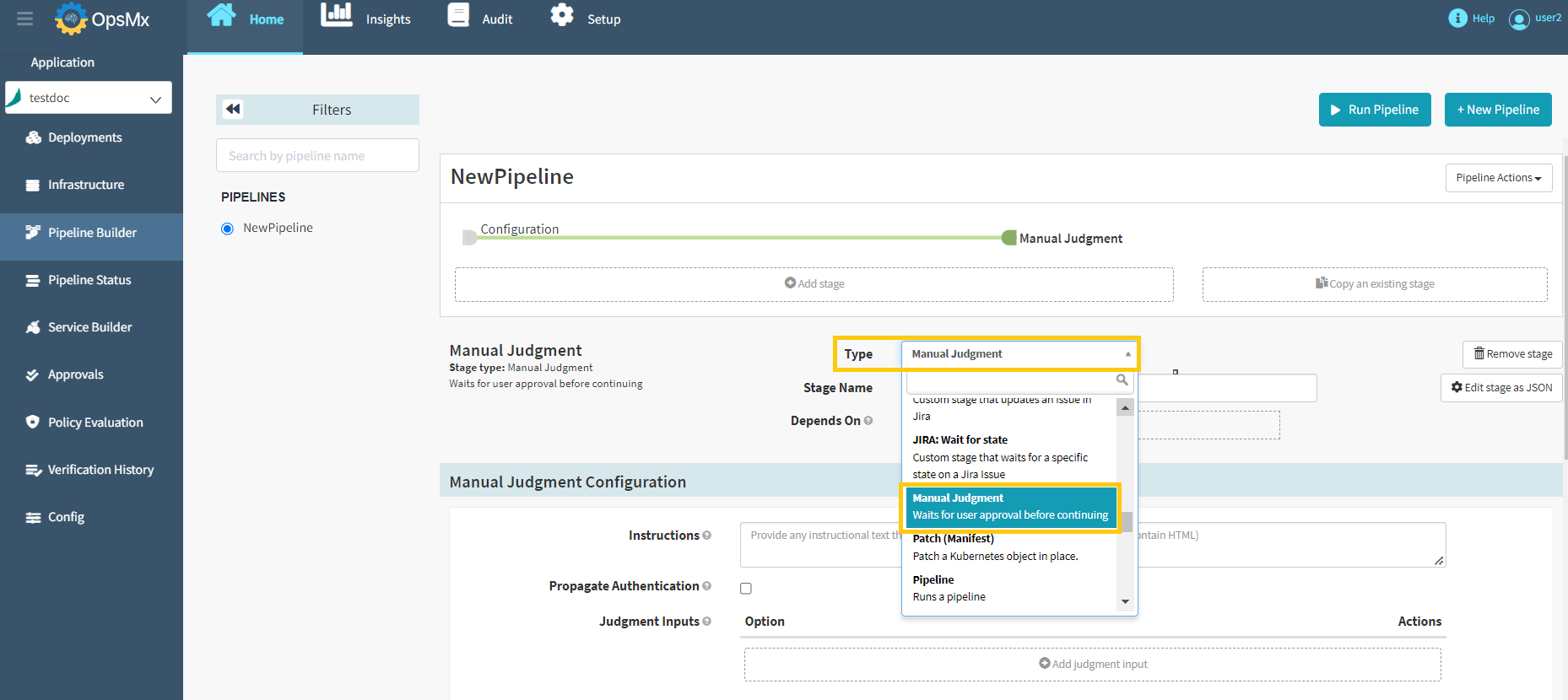

  4. Add manual Judgment stage: Select “Manual Judgment” stage from the drop down menu. You should add each stage and configure them in a logical sequence as ISD does not permit downstream dependencies.

    Manual_approval4

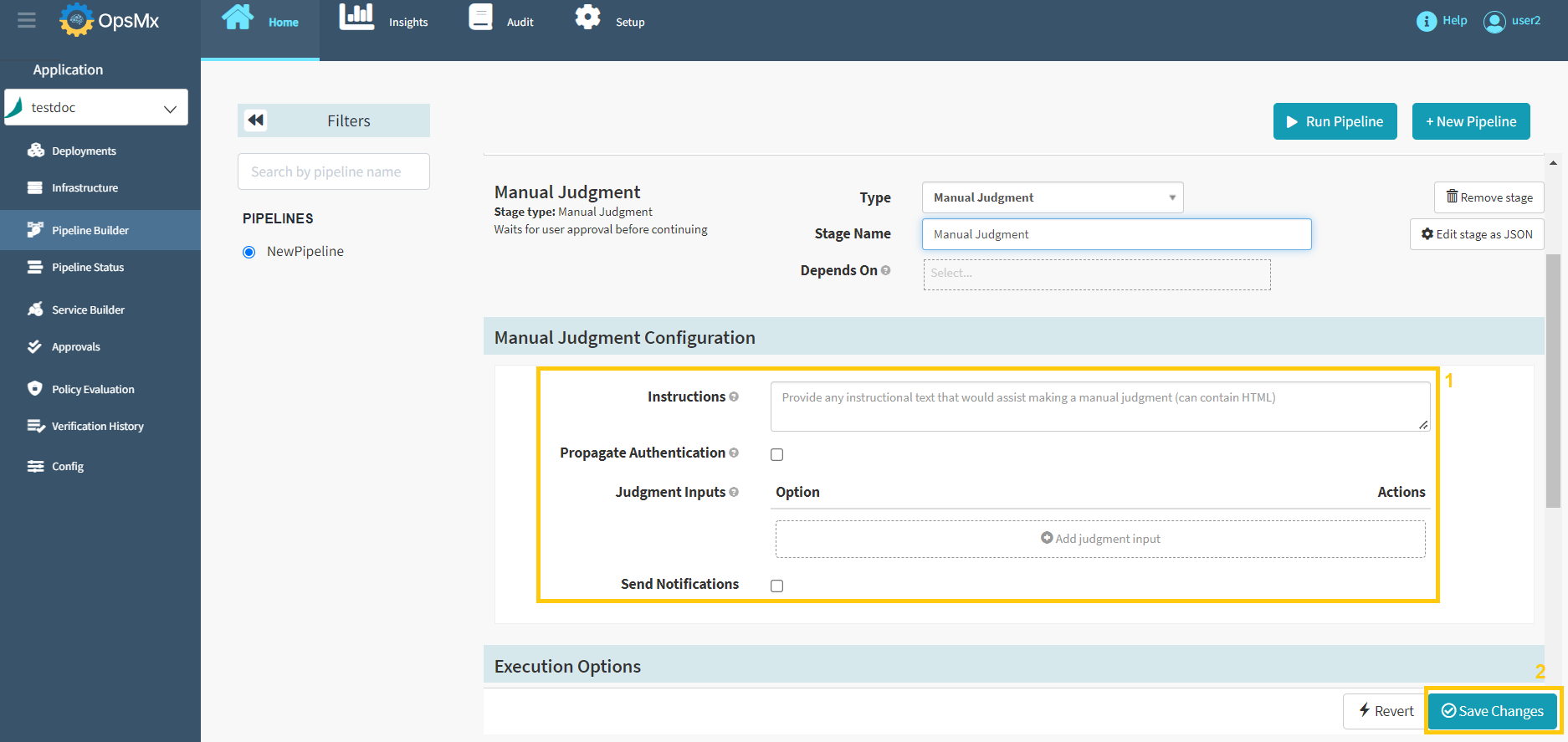

  5. Configure Manual Judgment: Configuring the manual judgment stage allows you to define input options a user can give and how they might give them. Update the required details in the below screen and click "Save Changes".

    Manual_approval5

    • Instructions (Optional): Provide any instructional text that would assist in making a manual judgment (can contain HTML). These Instructions are shown to the user when making a manual judgment.

    • Propagate Authentication:

      • If Checked - The pipeline will continue with the permissions of the approver.

      • If Unchecked - The pipeline will continue with its current permissions.

    • Judgment Inputs (Optional): Entries populate a dropdown displayed when performing a manual judgment. The selected value can be used in a subsequent Check Preconditions stage to determine to branch. For example, if the user selects "rollback" from this list of options, that branch can be activated by using the expression: execution.stages[n].context.judgmentInput=="rollback"

    • Send Notifications (Optional): If the user needs an instant alert, can opt this.

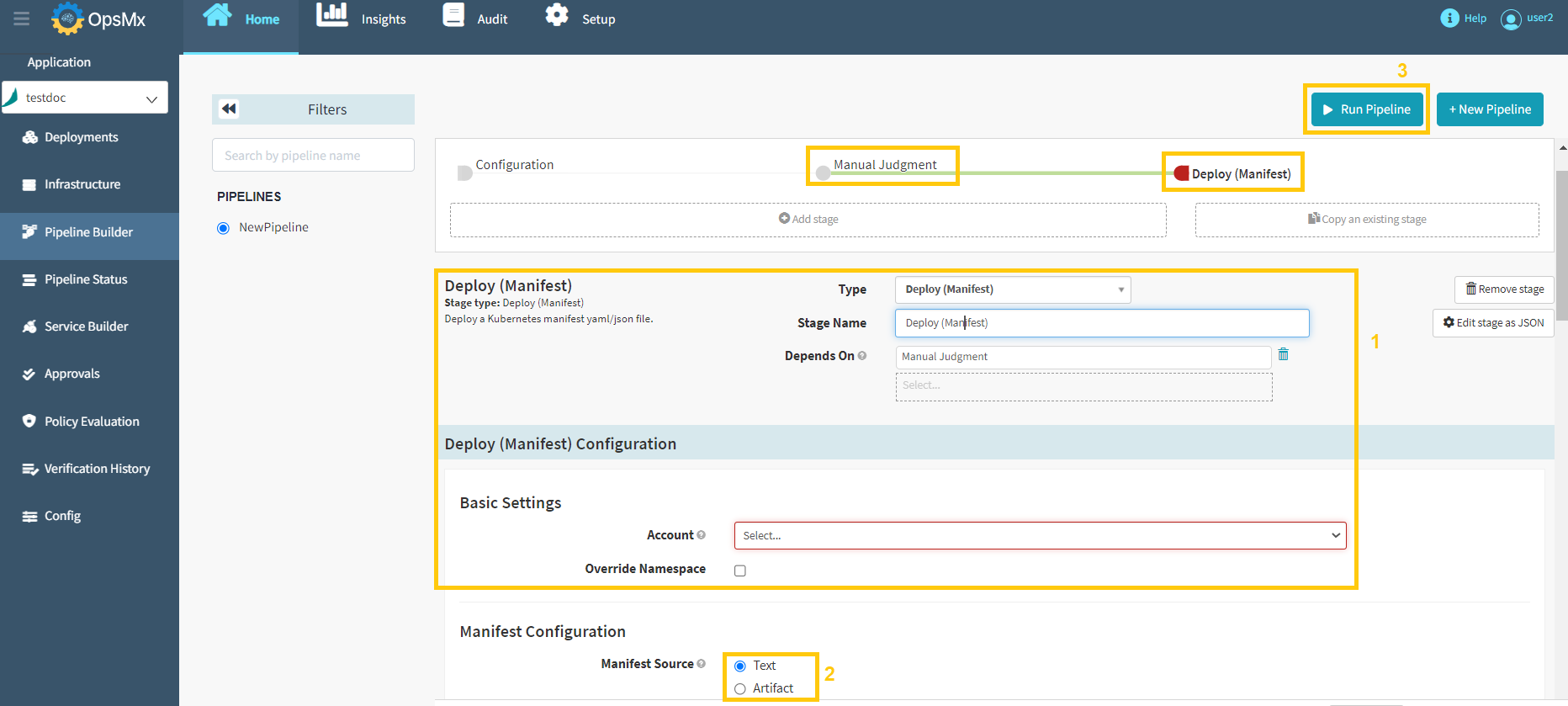

  6. Add your deployment stage: Much like our steps to create a Kubernetes deployment guide, you can either add it as a text or as an artifact.

    Manual_approval6

  7. Run your pipeline: Verify to make sure that it works.
