Add Trigger

A trigger is a mechanism in a software application that indicates the completion of a particular process and then initiates the next process.

A CI-CD pipeline is a set of tasks that are executed in a specific order. Triggers play an important role in automating and enhancing the capabilities of these pipelines.

A pipeline trigger specifies when a pipeline should be run automatically. Many types of triggers are available such as Jenkins jobs, webhooks, CRON jobs, and even other pipelines. When you add a trigger to your pipeline, it means the pipeline will run whenever the triggering event occurs. It is worth noting that whether or not you have set up a pipeline trigger, you can always run your pipeline manually.

Follow the steps below to add a trigger:

  1. Make sure you are editing the Configuration stage of the pipeline and click “Add Trigger” button as shown below.

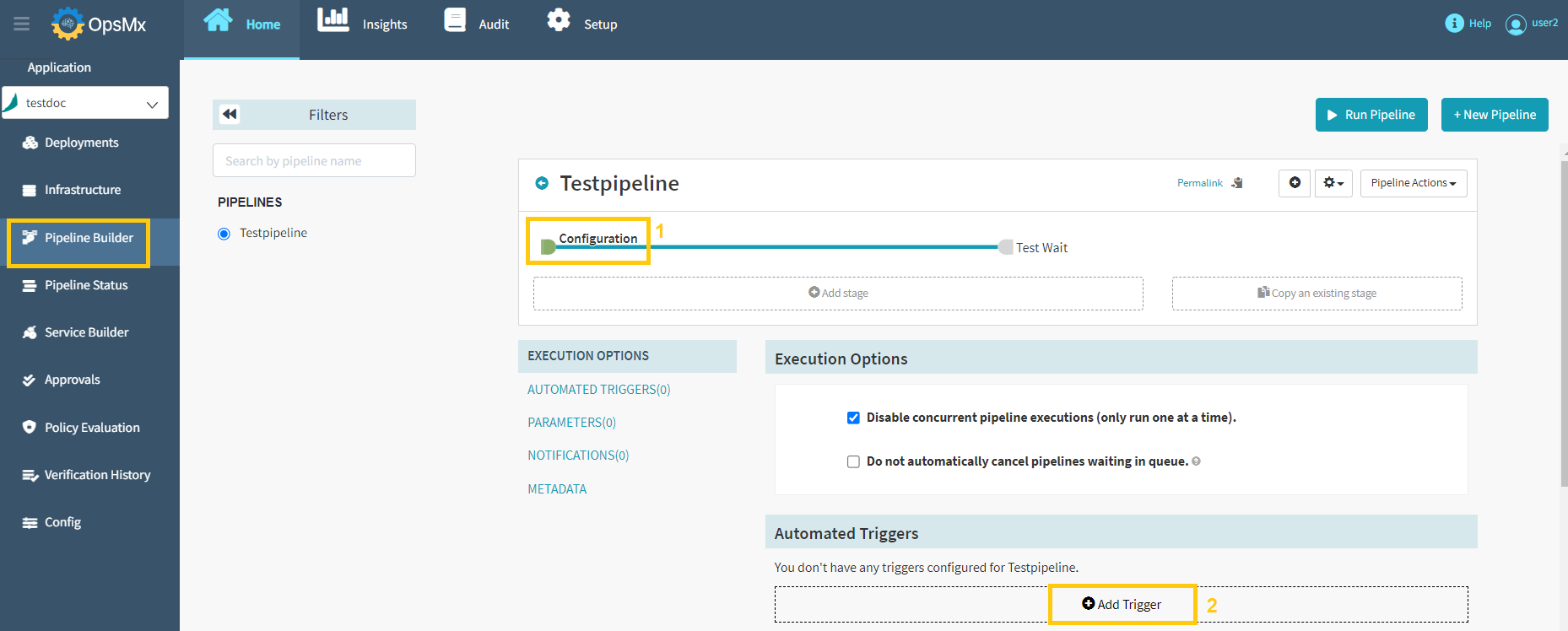

    Add_trigger1

  2. Select the “Type of trigger” and the “Artifact Constraints” from the drop-down menu. Artifacts are required for the trigger to execute. Only one of the artifacts needs to be present for the trigger to execute.

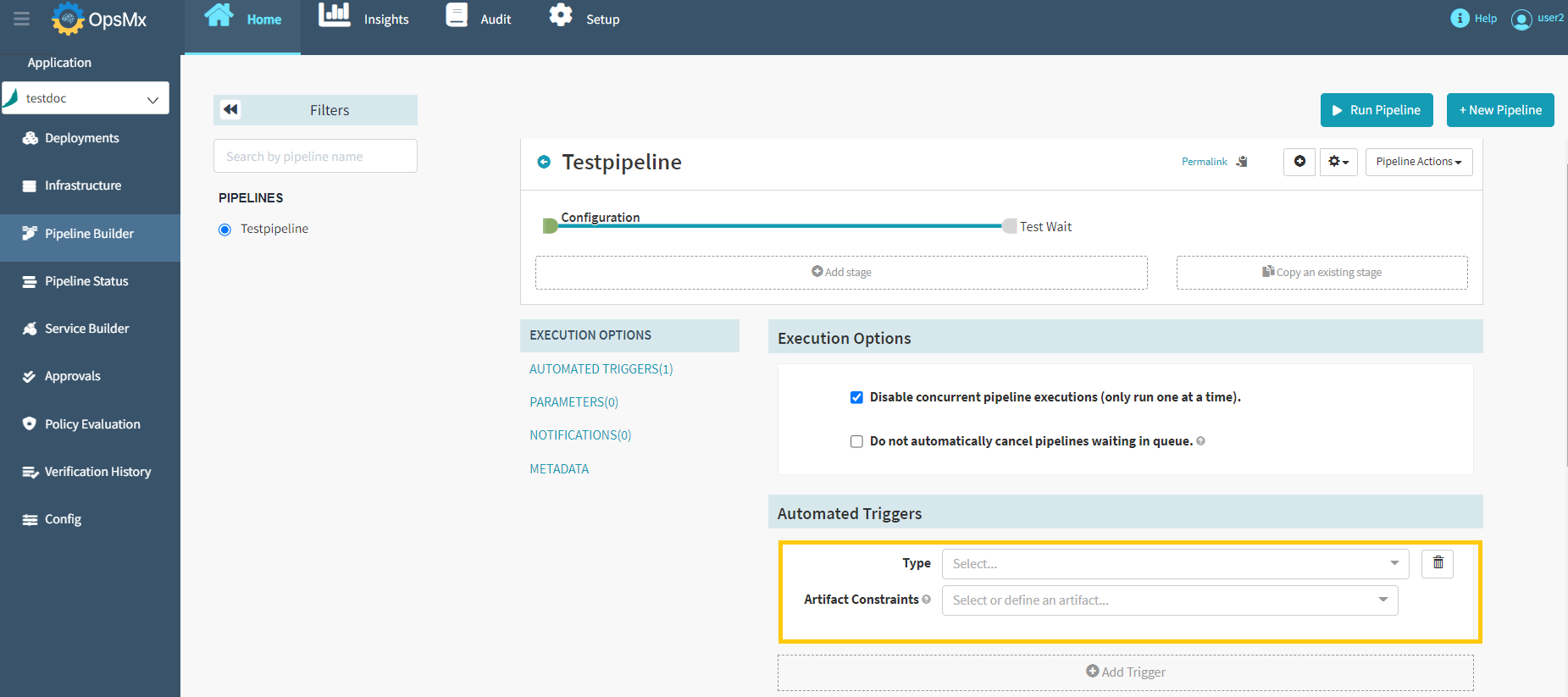

    Add_trigger2

    Available triggers are:

    • Artifactory

    • Concourse

    • CRON

    • Git

    • Helm chart

    • Jenkins

    • Nexus

    • Pipeline

    • Plugin

    • Pub/Sub

    • Travis

    • Webhook

    • Wercker

    • Docker Registry

  3. Trigger Configuration options will appear based on the selected trigger. Here we have shown an example of the “Concourse” trigger.

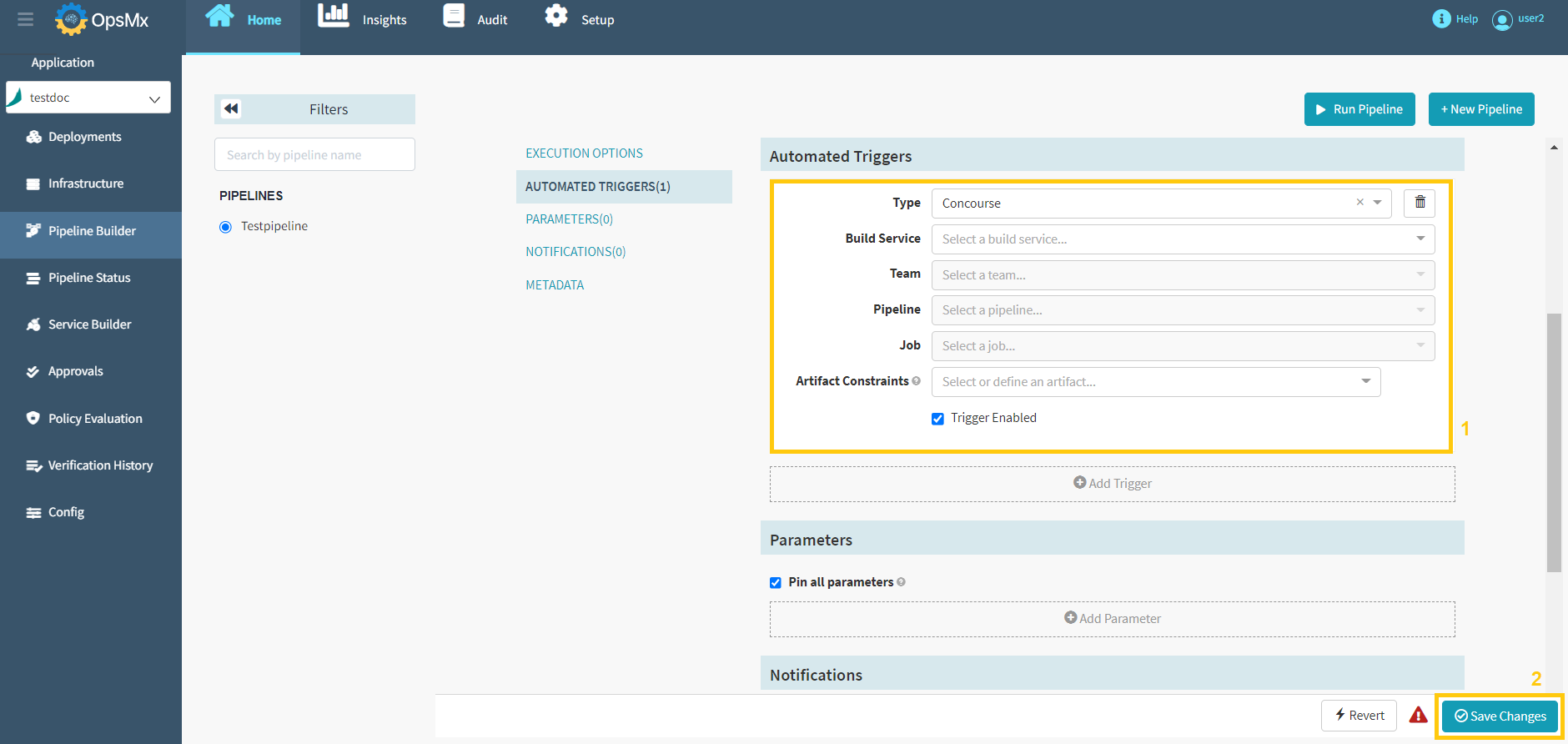

    Add_trigger3

  4. Update the required details in the above screen and click "Save Changes" to add a trigger.
